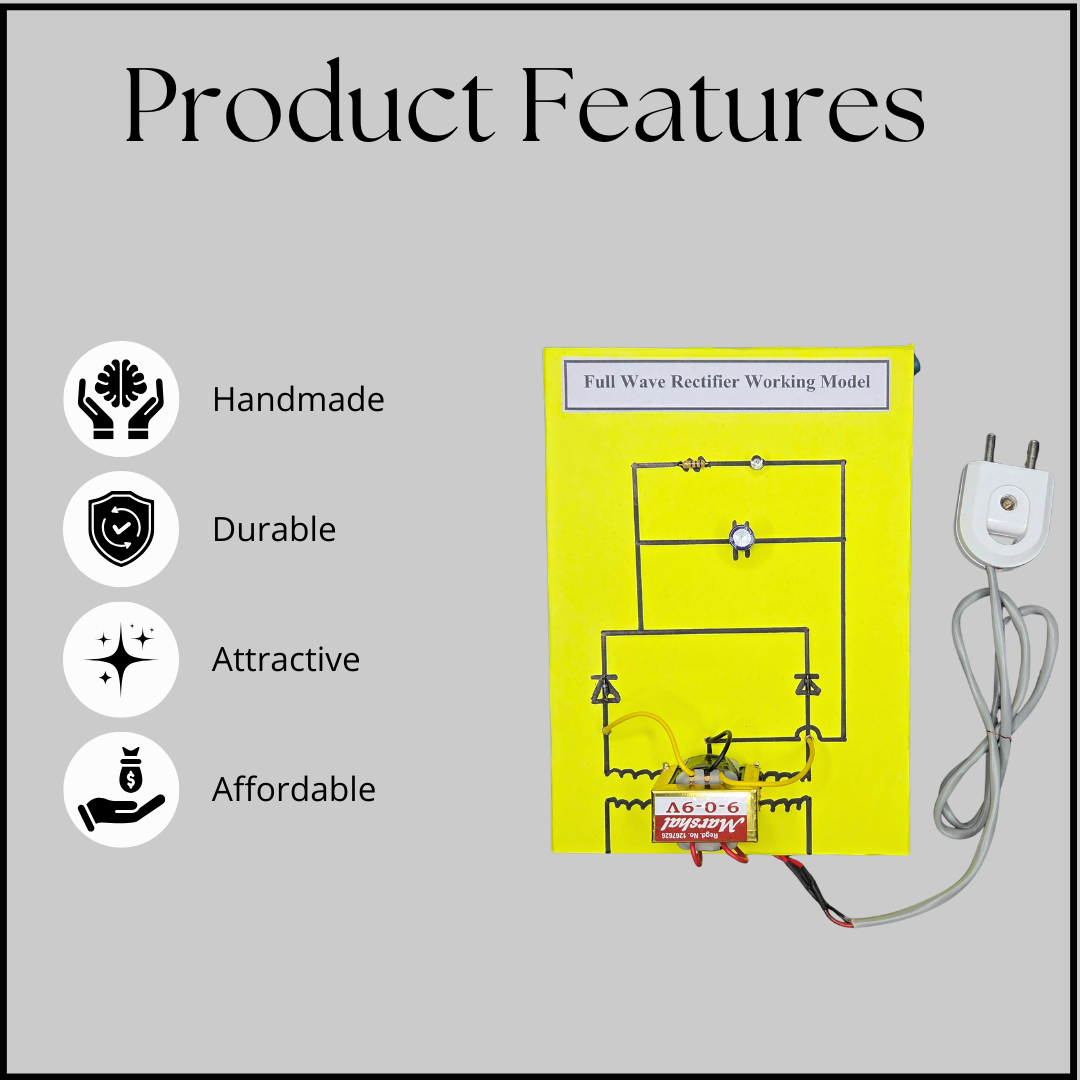

Full Wave Rectifier Working Model
Product Description:
Discover the magic of converting AC to DC with our Full Wave Rectifier working model! This hands-on tool is perfect for school projects, science fairs, or just exploring electronics at home. It demonstrates how a full wave rectifier works, making it easier to grasp essential concepts in electrical engineering.
Materials Used:
– Transformer
– Diodes
– Capacitor
– Resistor
– LED Light
– Connecting Wire
– Plug
This model is designed for learning and is ideal for physics experiments, classroom demonstrations, and interactive activities. It effectively shows how a full wave rectifier functions, making science both fun and understandable.
How to Use:
1. Connect the circuit to a power source (220v) and turn on the switch.
2. Observe the LED light up, indicating that the AC is being converted to DC.
3. Watch as the LED shines steadily, showing the rectification process in action
Precaution:
– This model operates on a 220V power supply; ensure adult supervision and familiarity with high voltage safety.
– Not suitable for children under 17 years; always have an adult present when in use.
– Avoid touching exposed wires while the power is on, and disconnect the power before making any adjustments.
Special Offer:
Purchase the Full Wave Rectifier Working Model and receive a project file PDF (worth ₹79) for free!
