Product Description:

Explore the fundamentals of AC to DC conversion with our Half Wave Rectifier Working Model! Ideal for students, science enthusiasts, and electronics learners, this hands-on model demonstrates the half wave rectification process. Perfect for classroom experiments, school projects, and personal exploration, this model offers an engaging way to understand the basic principles of rectification in electrical circuits.

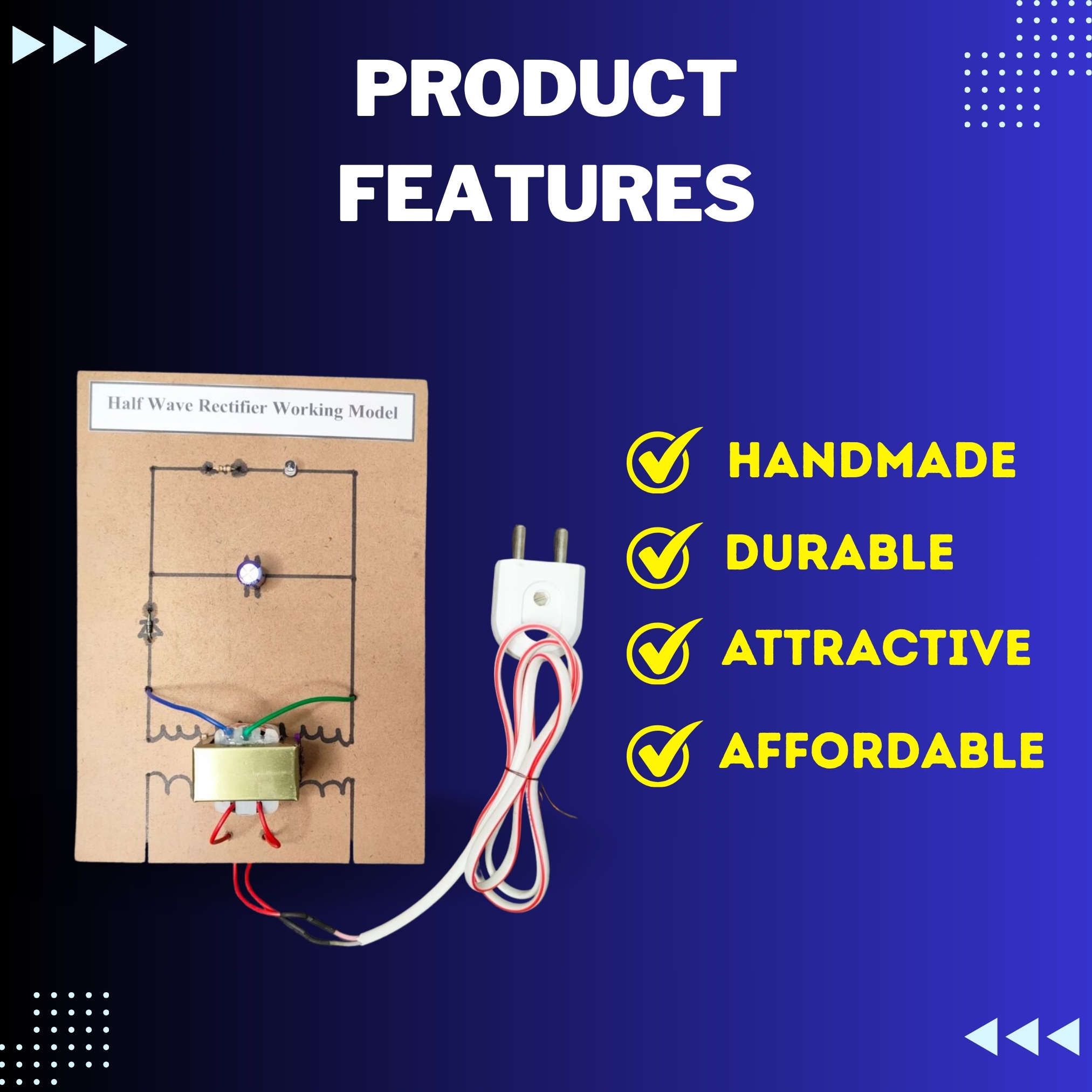

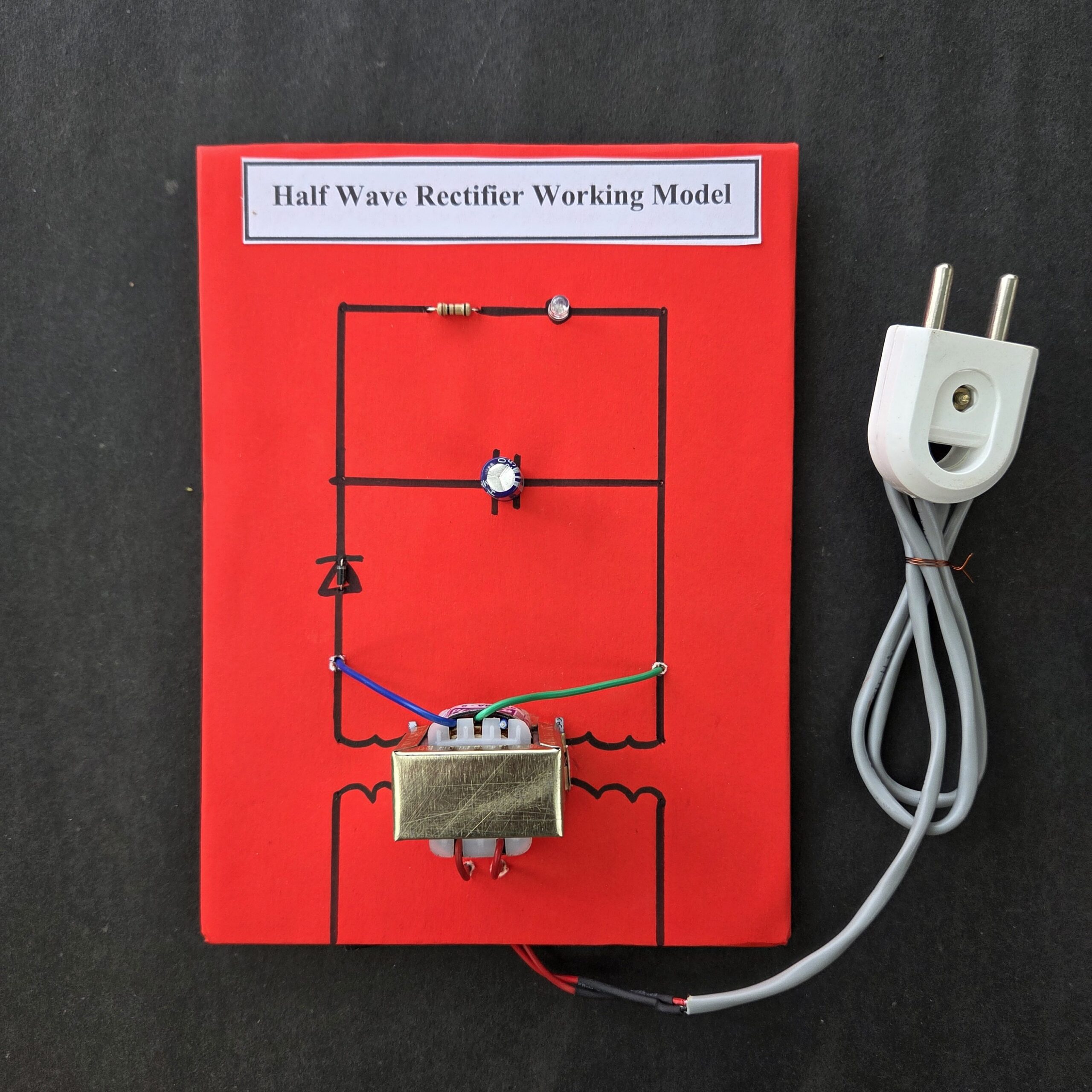

Materials Used:

– Transformer (0-9)

– Diode

– Capacitor

– Resistor

– LED Light

– Connecting Wire

– Plug

This model effectively showcases how a half wave rectifier works, providing a simple yet clear demonstration of how alternating current (AC) is converted into direct current (DC).

How to Use:

1. Connect the circuit to a power source (220V) and switch it on.

2. Observe the LED light up, indicating the conversion of AC to DC.

3. Watch the LED blink in sync with the AC supply, illustrating the half wave rectification process.

Precaution:

– The model operates on a 220V power supply; adult supervision is required for safety.

– Not suitable for children under 17; always ensure an adult is present when in use.

– Never touch exposed wires while the power is on. Disconnect the power before making any adjustments.

Special Offer: Purchase the Half Wave Rectifier Working Model and get a report file PDF (worth ₹79) for free!
